La courroie AVX10 est une courroie conçue pour la transmission de puissance sur équipements agricoles et industriels. Elle offre une bonne adhérence, réduit le glissement et assure un fonctionnement fiable.
------------------------------------------------------------------------------------
The AVX10 V-belt is designed for power transmission on agricultural and industrial equipment. It provides good grip, reduces slipping, and ensures reliable operation.
Alternative to : 173821
Belt No AVX10 x 1150
Brand : Agribelt
Datum length LD (mm) : 1137
Depth (mm) : 8
Depth ins : 5/16
Effective Length (ins) : 45
Effective Length (mm) : 1137
Inside length Li (mm) : 1099
Inside length Li ins : 43
Outside length La (ins) : 45
Outside length La (mm) : 1150
Pitch Length (Lp) (Lw) : 1137

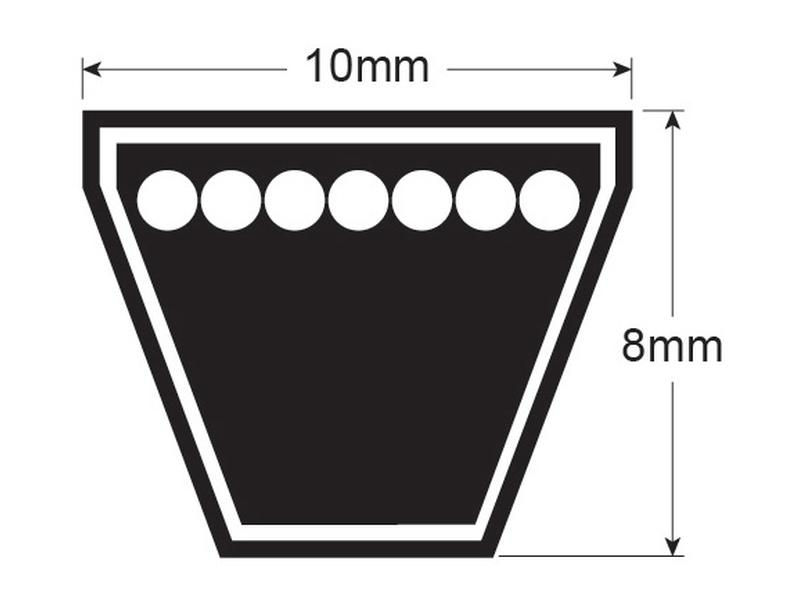

Top Width x Depth : 10 x 8mm (3/8'' x 5/16'')
Type : Raw Edge Moulded Cogged Fan Belt
Width (ins) : 3/8
Width (mm) : 10
Suitable For Make/Model :
Allis Chalmers : 5040, 5045, 5050
Case IH / International Harvester : 55JXM, 65JXM, 75JXM, JX100U, JX1060C, JX1070C, JX1075C, JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95
Deutz-Fahr : DX 140, DX 145, DX 160, DX6.50
Fiat : 100-55, 100-90, 1000, 110-90, 115-90, 1180, 130-90, 140-90, 446, 45-66, 450, 466, 480, 50-66, 500, 540, 55-46, 55-66, 55-86, 550, 56-66, 566, 60-46, 60-65, 60-66, 60-75, 60-93, 60-94, 600, 62-85, 62-86, 640, 65-46, 65-56, 65-66, 65-93, 65-94, 666, 70-56, 70-65, 70-66, 70-75, 70-76, 70-86, 72-85, 72-86, 72-93, 72-94, 766, 80-65, 80-66, 80-75, 80-76, 82-85, 82-86, 82-93, 82-94, 88-93, 88-94, 90-90, 900, 95-55, 980, L60, L65, L75, L85, L95
Ford / New Holland : 3010S, 4010S, 4135, 4230, 4330, 4430, 4635, 4835, 5635, 6635, 7635, 8430, T4.55, T4.75, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D, TD95D HC PLUS, TK4030, TL100, TL70, TL80, TL90, TN55, TN55D, TN55S, TN60DA, TN60SA, TN65, TN65D, TN65F, TN65S, TN70, TN70D, TN70DA, TN70F, TN70S, TN70SA, TN75, TN75D, TN75DA, TN75F, TN75FA, TN75S, TN75SA, TN80F, TN85FA, TN90F, TN95F, TN95FA, TT55, TT65, TT75
Long Tractor : 2260, 2310, 2360, 2460, 2460DTC, 2460SD, 2460SD-DTC, 2510, 2510DTC, 2510SD, 2510SD-DTC, 260C, 310, 310C, 310DT, 320, 350, 360, 360C, 445, 445DT, 445SD, 445V, 460, 460DT, 460SD, 460V, 510, 510DT, 560, 560DT, 560DTE, 610, 610C, 610DT, 610DTE
White Oliver : 1250A, 1255, 1265, 1270, 1355, 1365, 1370, 2-50, 2-60
OEM Part Numbers : 72090561, 72091544, 72090561V, K903050, B502240, 98473706, 5088081, 4796327, 4796324, 4618920, 4624737, B502240, K903050, K605030, 02235180, 4796327, 4796328, 920016251, 4624738, 04796328, 04796327, 04624737, 1930363, 4619299, 4615470, 4612096, 468854, 98473706, 4796324, 4796326, 468855, 4688854, 4624737, 4618920, 4615473,
4796327, 4796328, 5088081, K903050, 98473706, 1930363, TX10276, 6201102M1, 72090561, 72094519, 30-3045080
